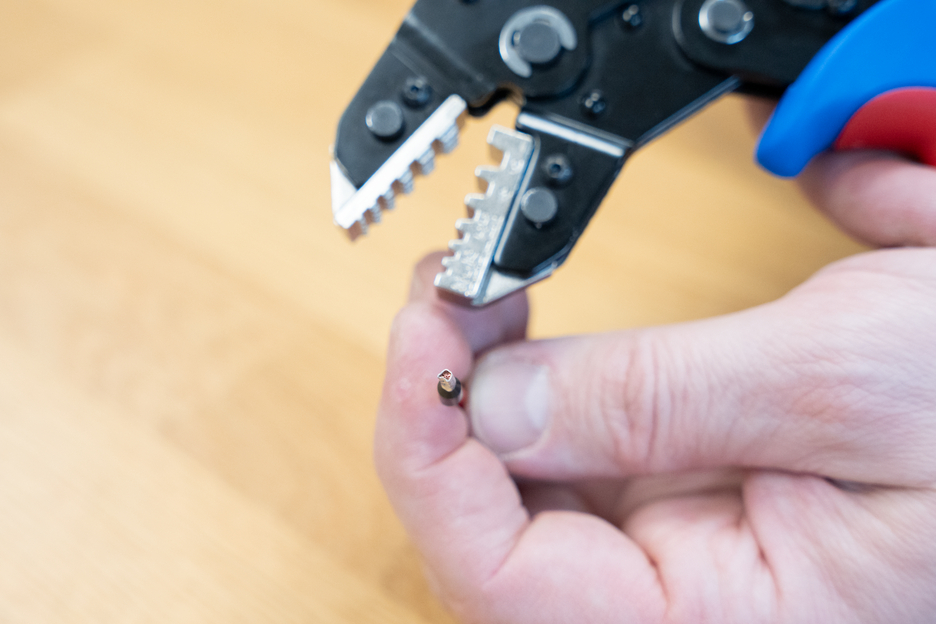

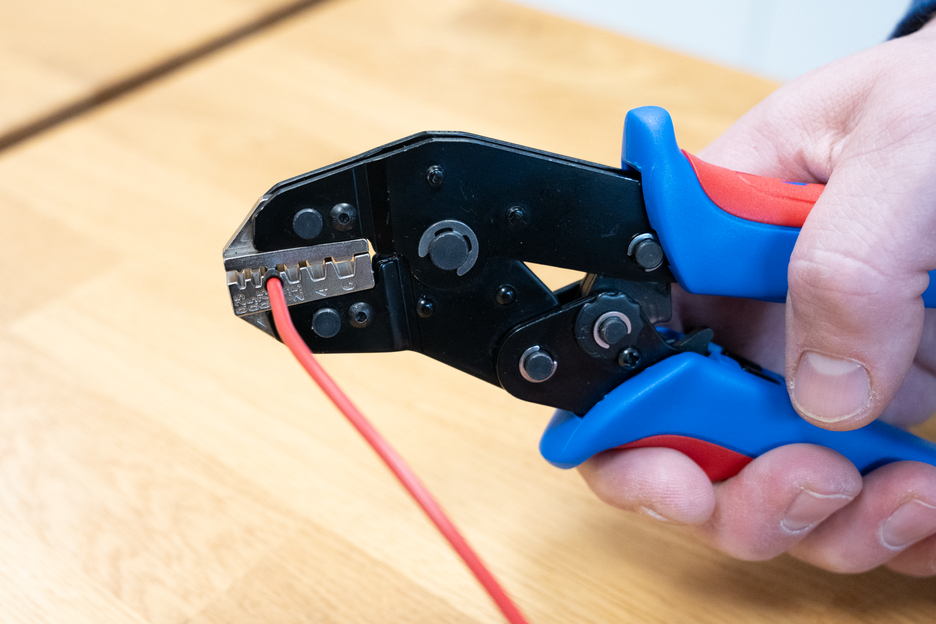

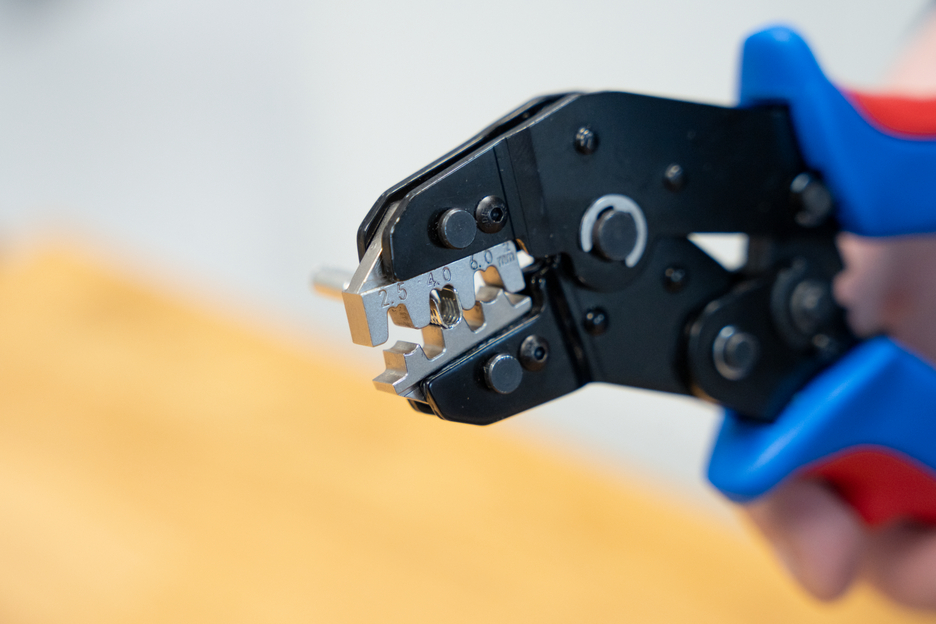

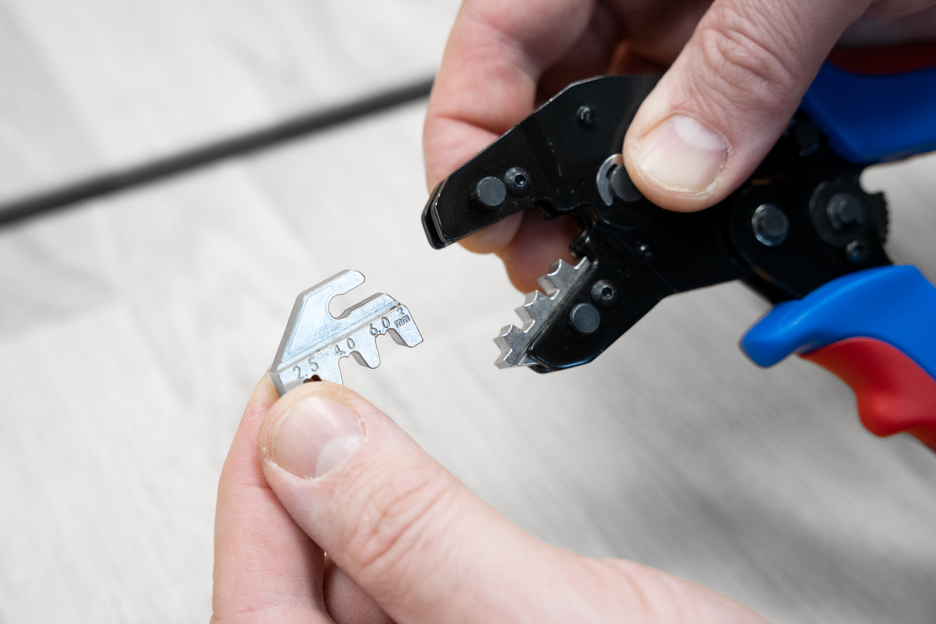

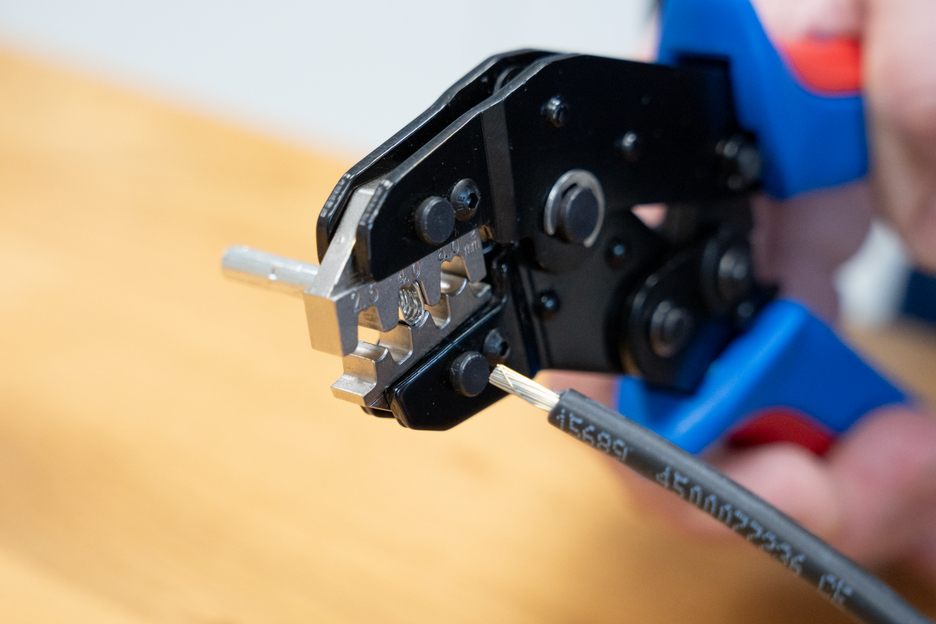

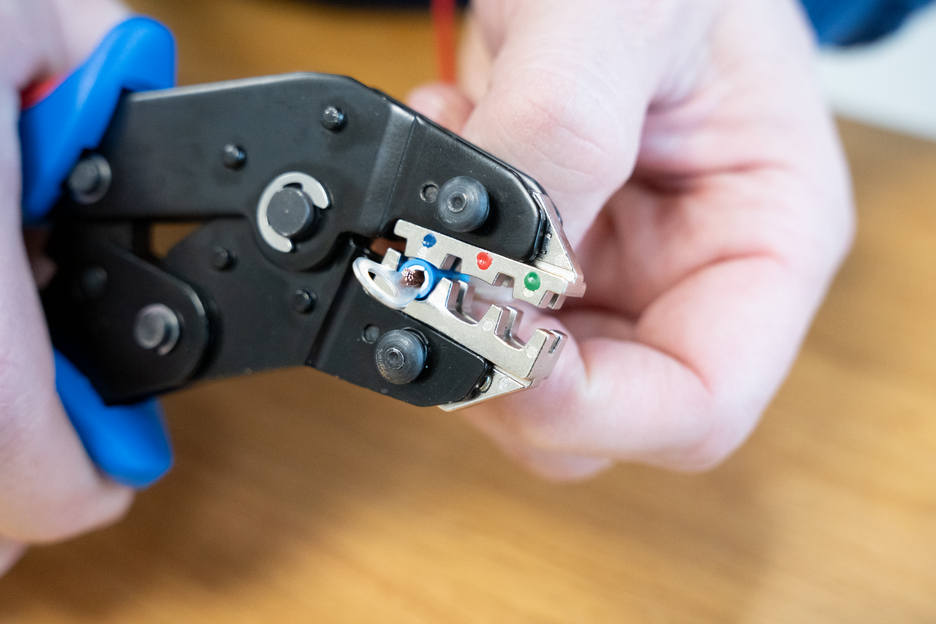

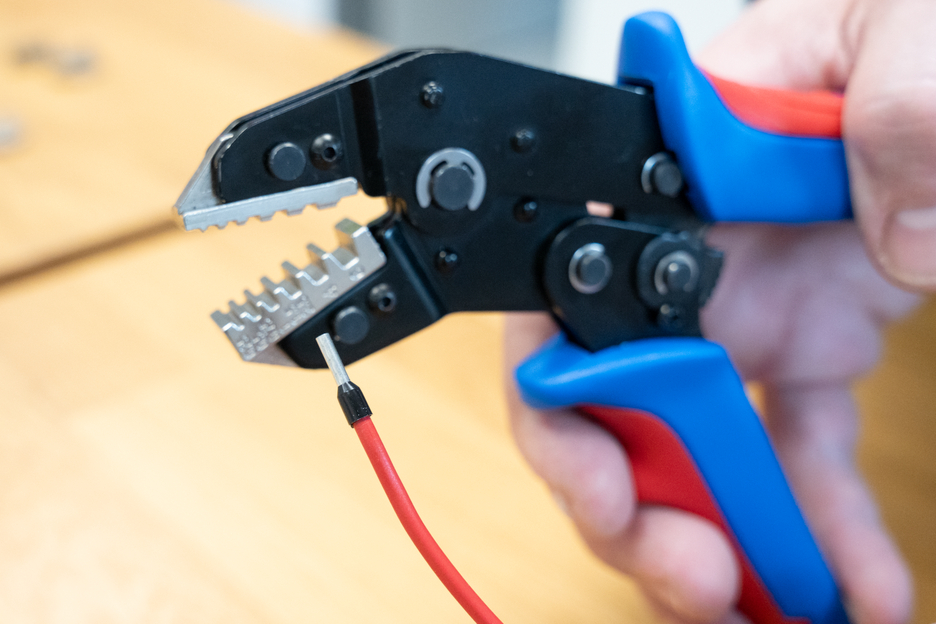

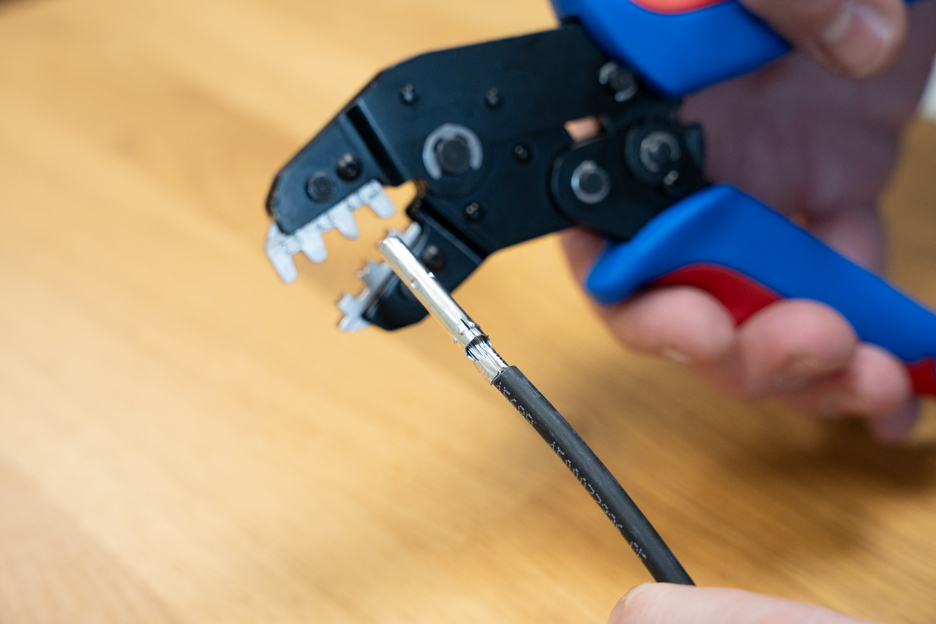

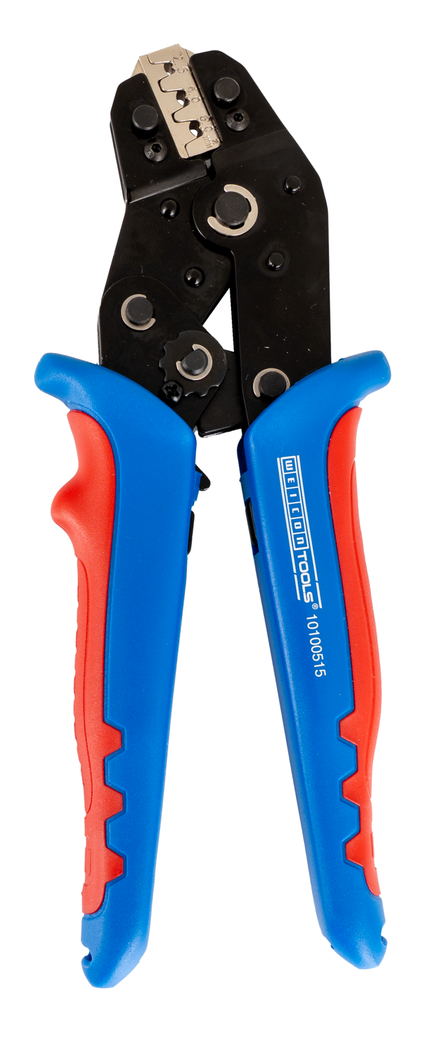

MULTI-CRIMP was developed for the process-safe crimping of various electrical connectors. The crimping tool has a ratchet mechanism with a blocking device to ensure a consistently high crimping quality and results that can be precisely repeated. The mechanism only opens the tool when the crimping process is complete. An emergency release has also been integrated into the handle, which opens the crimping tool in the event of misuse. The accurate eccentric setting ensures a high crimping quality thanks to the precisely adjustable crimping force. With the Multi Change System, the module pairs of the crimping tool can be exchanged quickly and easily, as needed. The change system, which requires no additional tools, ensures that the modules can be installed and removed fast. The standard version of the crimping tool is equipped with three pairs of modules made of high-quality steel. One pair for MC4 connectors with cable cross-sections of 2.5 mm², 4 mm² and 6 mm² (14-10 AWG). Another pair of modules for insulated wire end ferrules from 0.25-6 mm² (AWG 24-10) and a third module for insulated cable lugs from 0.25-2.5 mm² (AWG 24-14). The three pairs of modules are stored safely and protected from dust in a small plastic box. The 2-component handles of the MULTI-CRIMP tool ensure non-slip and ergonomically friendly handling with maximum force transmission. The tried and tested “ice-crack design” was used, which ensures a comfortable feel. The integrated eyelets on the handles can be used to attach a safety catch.

다운로드
정보

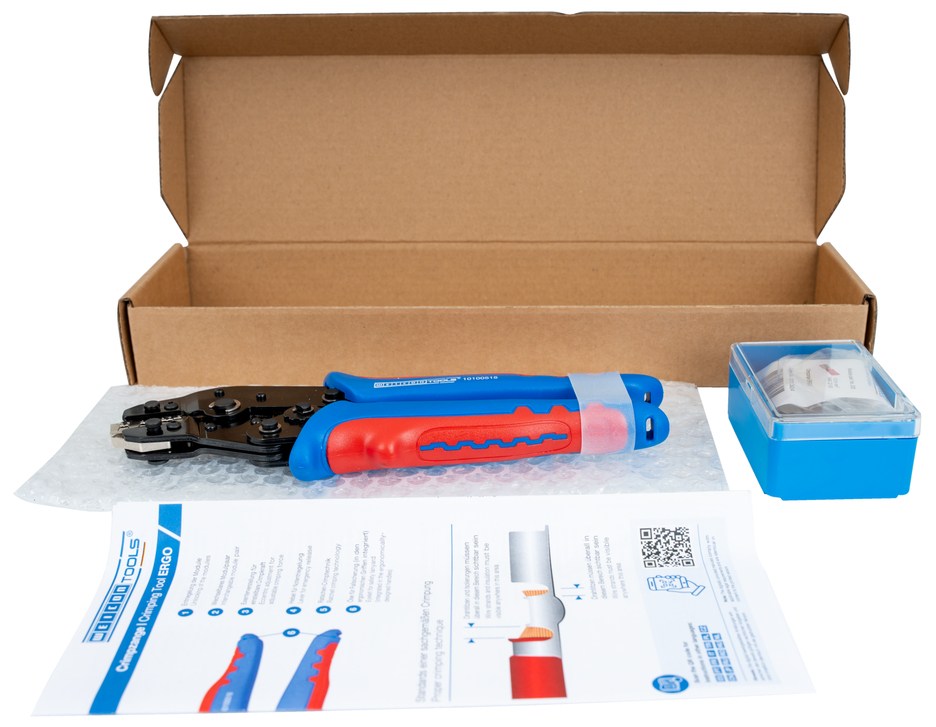

  • Werkzeug

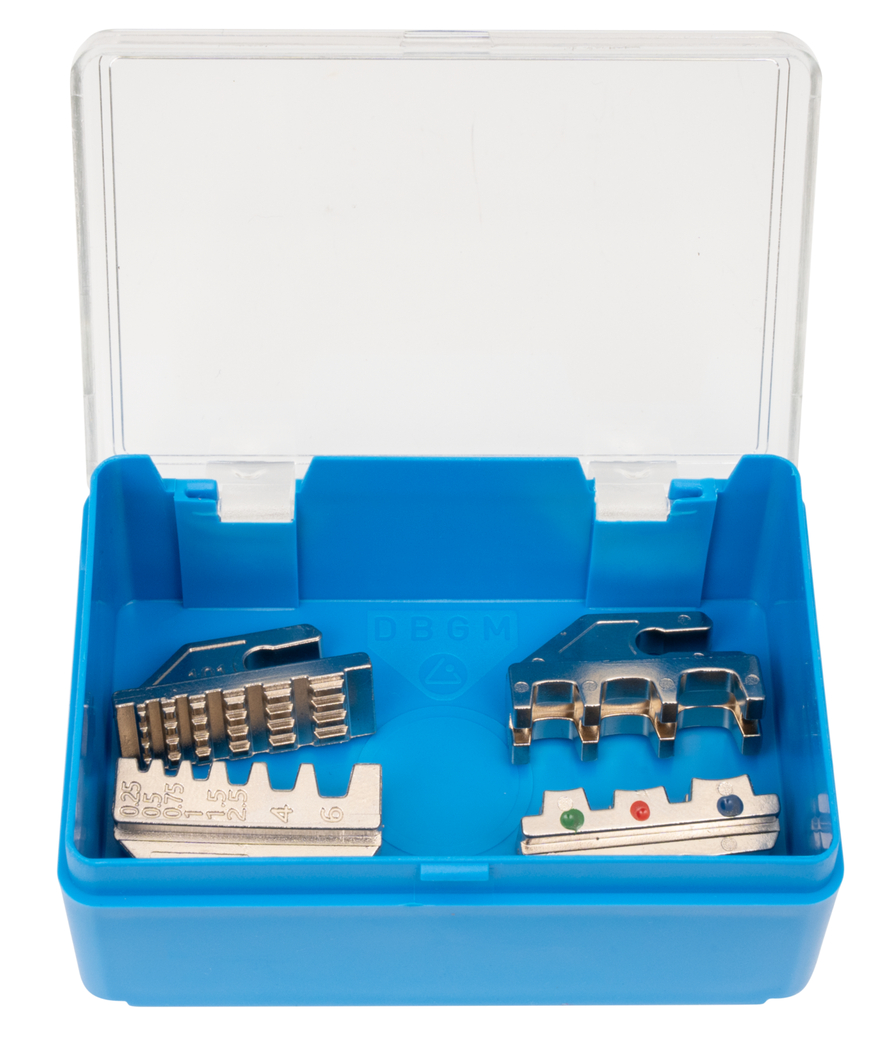

  • Box mit Crimpmodulen
  • Gebrauchsanweisung

Please enter a valid email address.
Please enter a valid question.
Fields marked with * are mandatory.

There aren't any asked questions yet.
Skip product gallery

권장 사항

전선 스트리퍼 5번
모든 일반 연선 및 단선용 I 작업 범위 0,2 - 6,0 mm²
세부 정보
W 44 T® 멀티 스프레이
5중 기능을 갖춘 윤활 및 다기능 오일
세부 정보

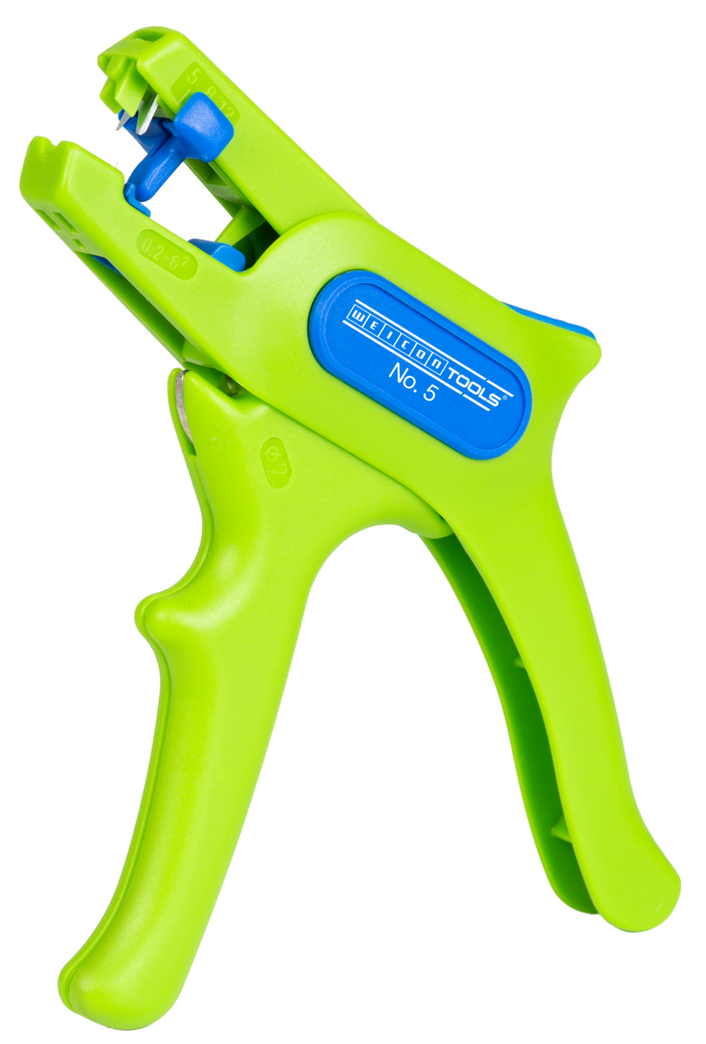

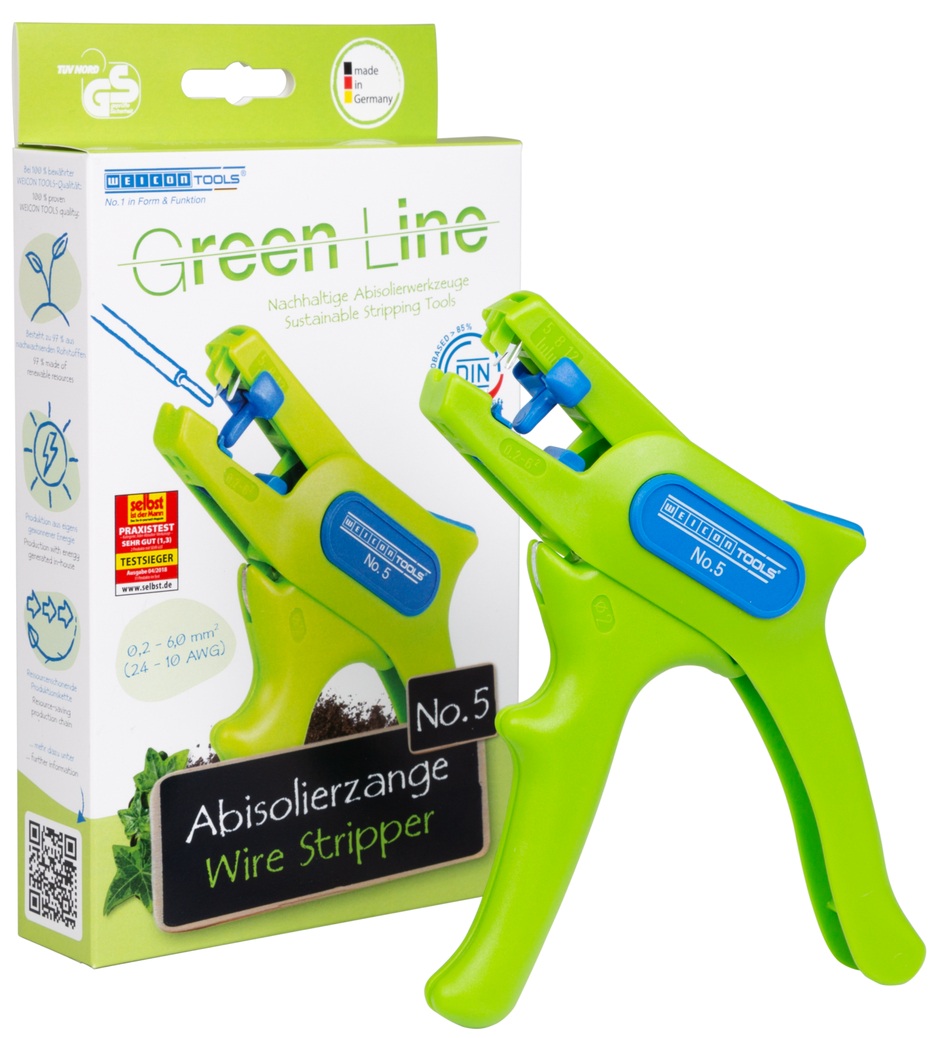

와이어 스트리퍼 5번 녹색 라인
모든 일반 연선 및 단선 도체를 위한 지속 가능한 피복제거 공구 I, 작업 범위 0,2 - 6,0 mm²
세부 정보
와이어 스트리퍼 5번 Pro
모든 일반 연선 및 단선용 I 작업 범위 0,2 - 16,0 mm²
세부 정보

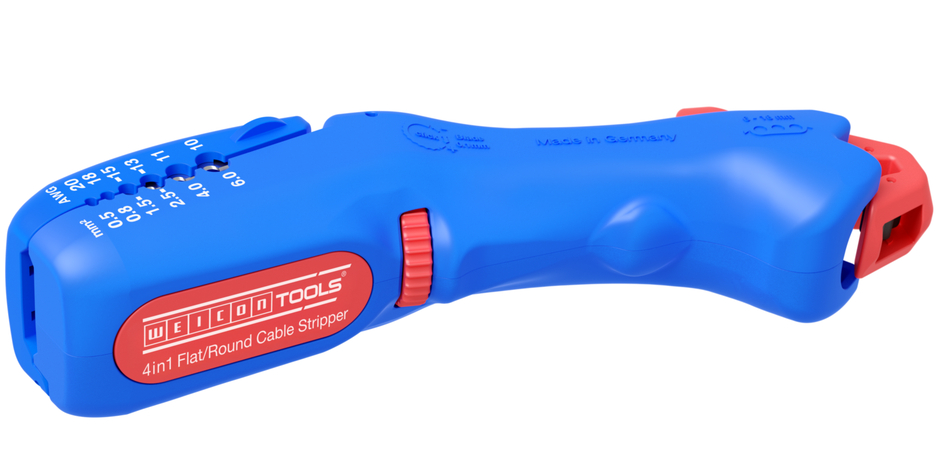

평평한, 둥근 케이블 스트리퍼
