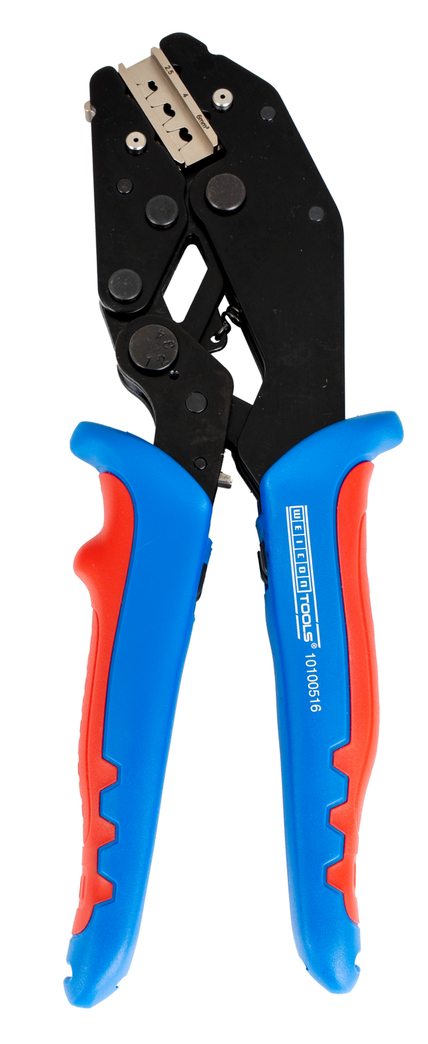

압착 도구 ERGO
설명
차단 장치가 있는 래칫 메커니즘으로 정밀한 작업 가능 공정 안전 압착 - 압착 공정 후에만 공구가 열림 손잡이의 비상 해제(오용 시) 3종 세트: MC4 커넥터/절연 전선 엔드 페룰/절연 케이블 러그용 모듈 빠른 모듈 교체를 위한 모듈식 멀티 체인지 시스템 압착력 조절을 위한 편심 설정 2가지 구성품 손잡이 덕분에 편안한 느낌

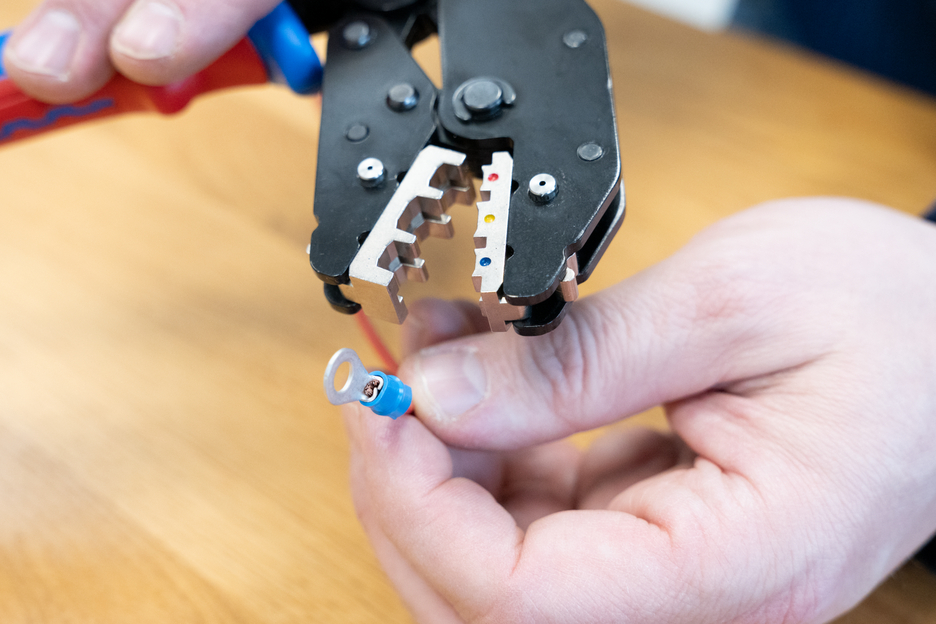

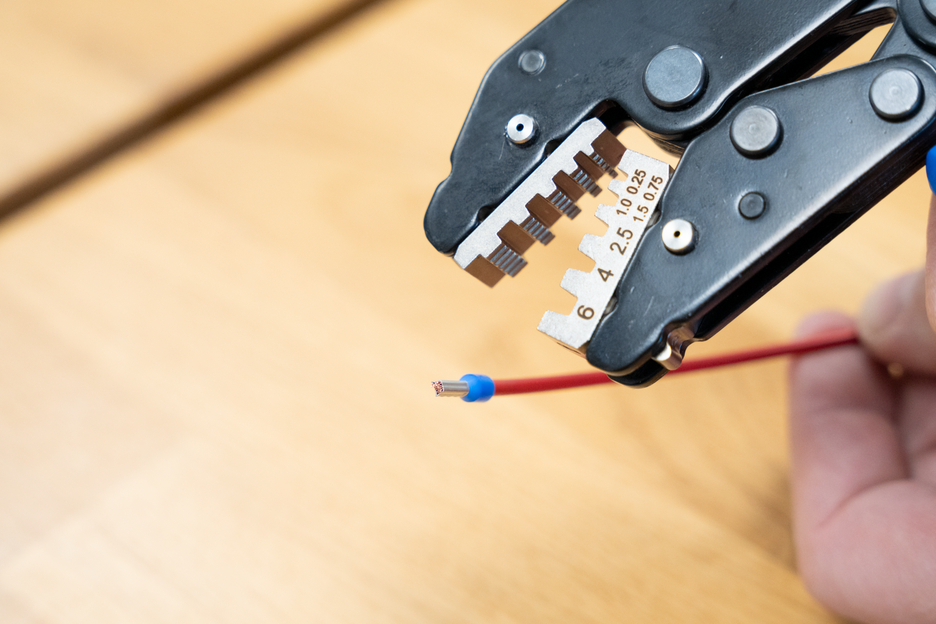

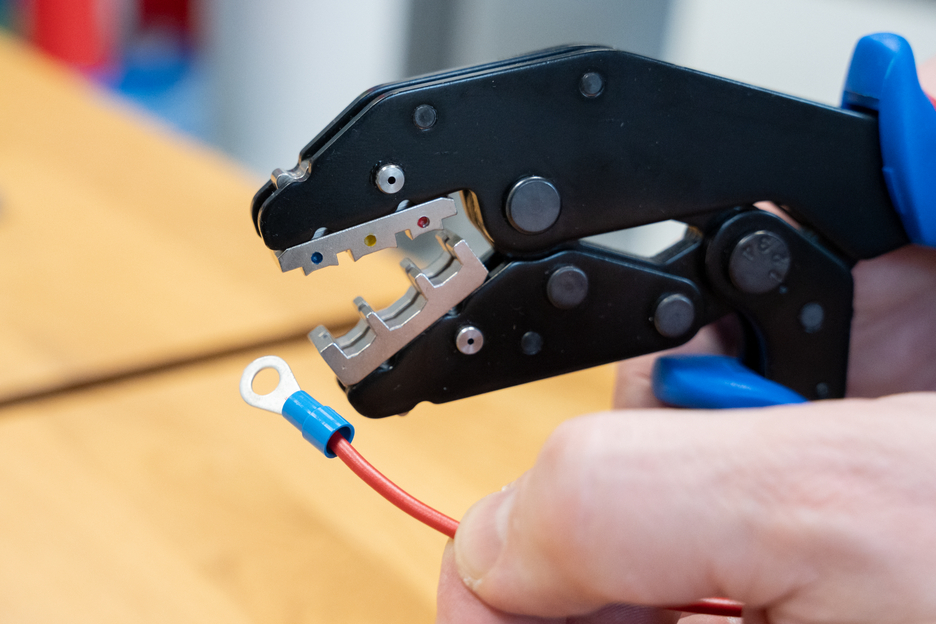

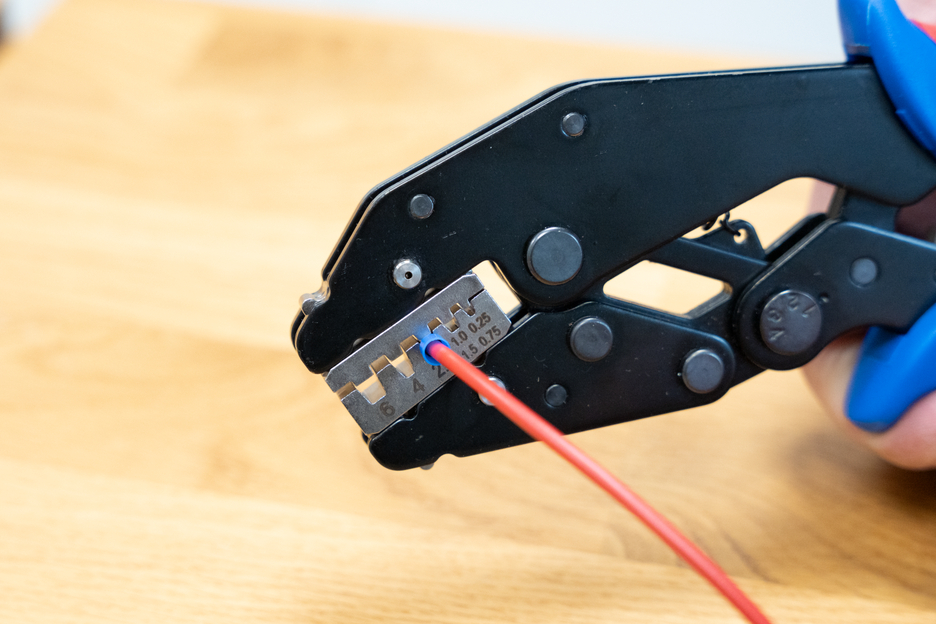

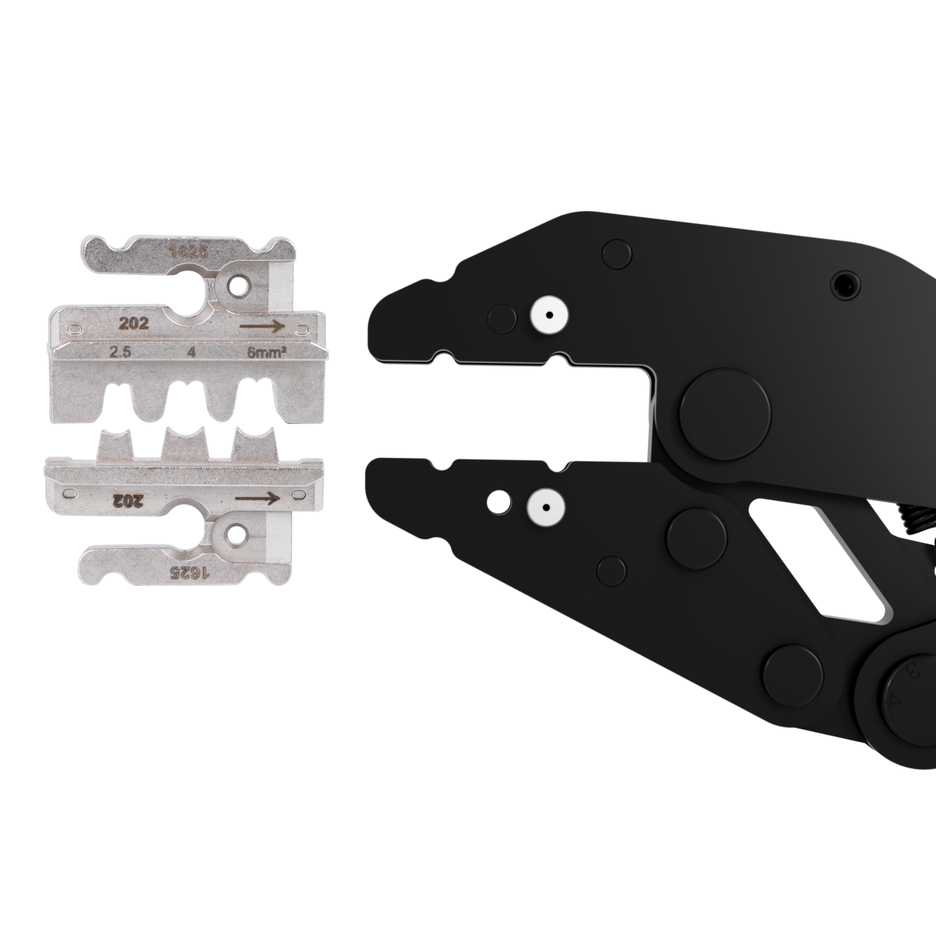

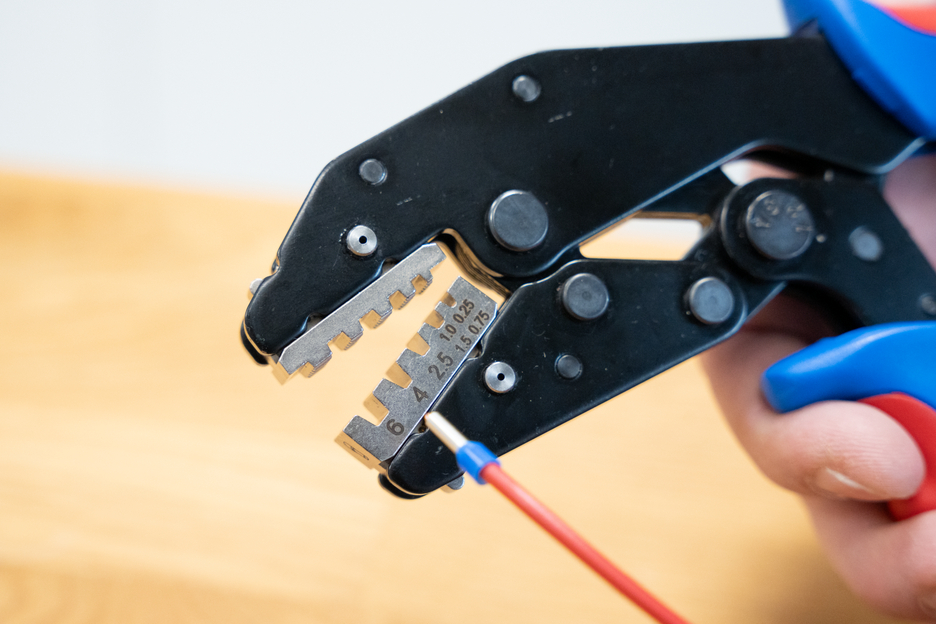

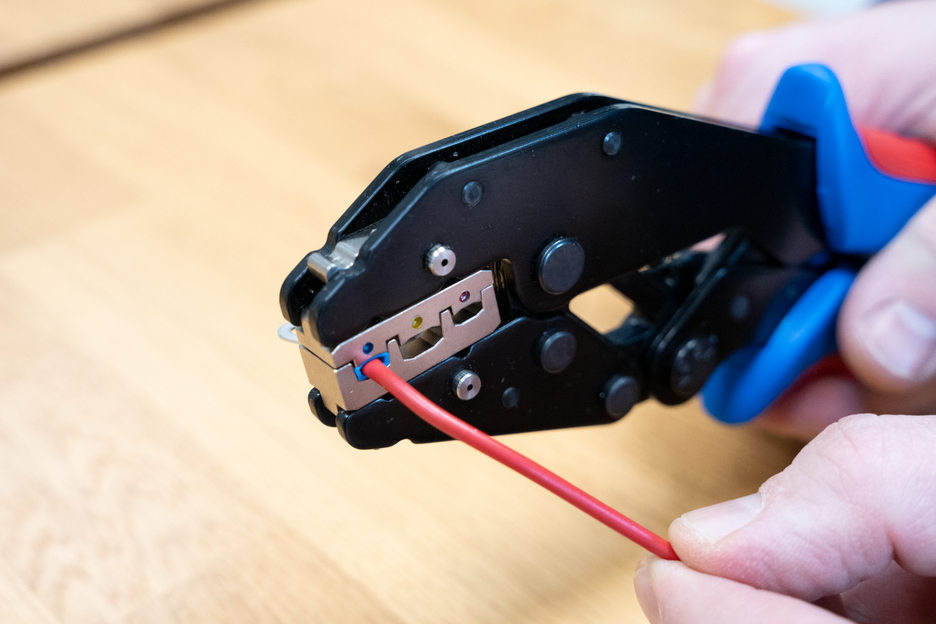

ERGO-CRIMP was developed for the process-safe crimping of various electrical connectors. The crimping tool has a ratchet mechanism with a blocking device to ensure a consistently high crimping quality and results that can be precisely repeated. The mechanism only opens the tool when the crimping process is complete. In addition, an emergency release has been integrated into the handle, which allows the user to open the crimping tool whenever necessary, e.g. in the event of misuse. Another special feature is the adjustable crimping force, which ensures a high crimping quality thanks to the precise eccentric setting. With the Multi Change System, the crimp modules can be exchanged quickly, as needed. The simple change system, which requires no additional tools, ensures that the modules can be installed and removed fast. The ERGO-CRIMP tool includes three pairs of modules made of high-quality steel. One module is suitable for MC4 connectors with cable cross-sections of 2.5 mm², 4 mm² and 6 mm² (14-10 AWG). Another pair of modules is suitable for insulated wire end ferrules from 0.25-6 mm² (AWG 24-10). The third pair of modules was developed for insulated cable lugs from 0.5-6mm² (AWG 22-10). The three pairs of modules are stored safely and protected from dust in a small plastic box. Additional module pairs are also available as accessories. The 2-component handles ensure non-slip and ergonomically friendly handling for maximum force transmission. The tried-and-tested “ice-crack design” was used, which ensures a comfortable feel. The integrated eyelets on the handles can be used to attach a safety catch.
다운로드
정보

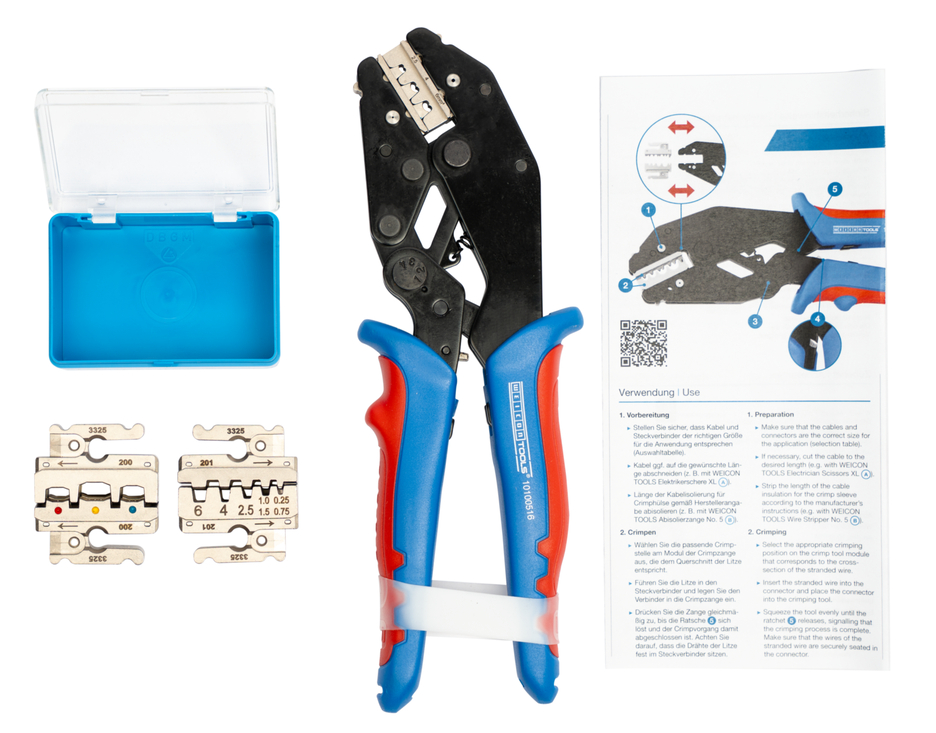

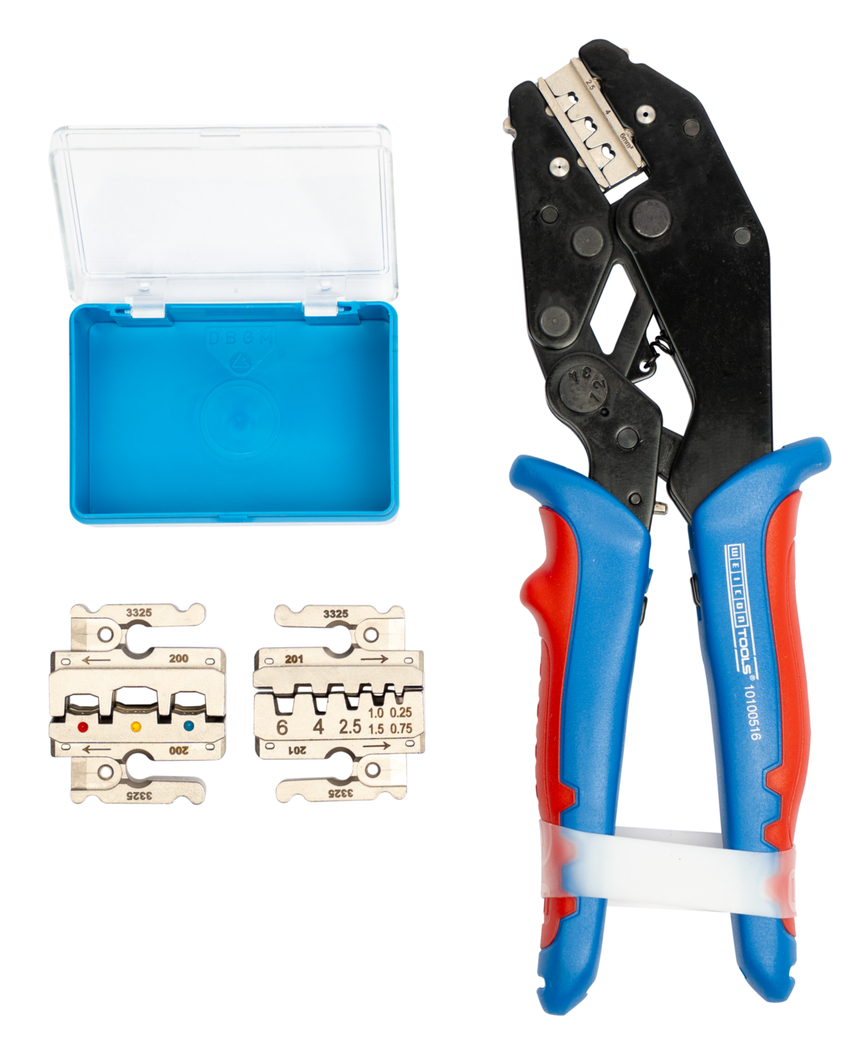

- 도구

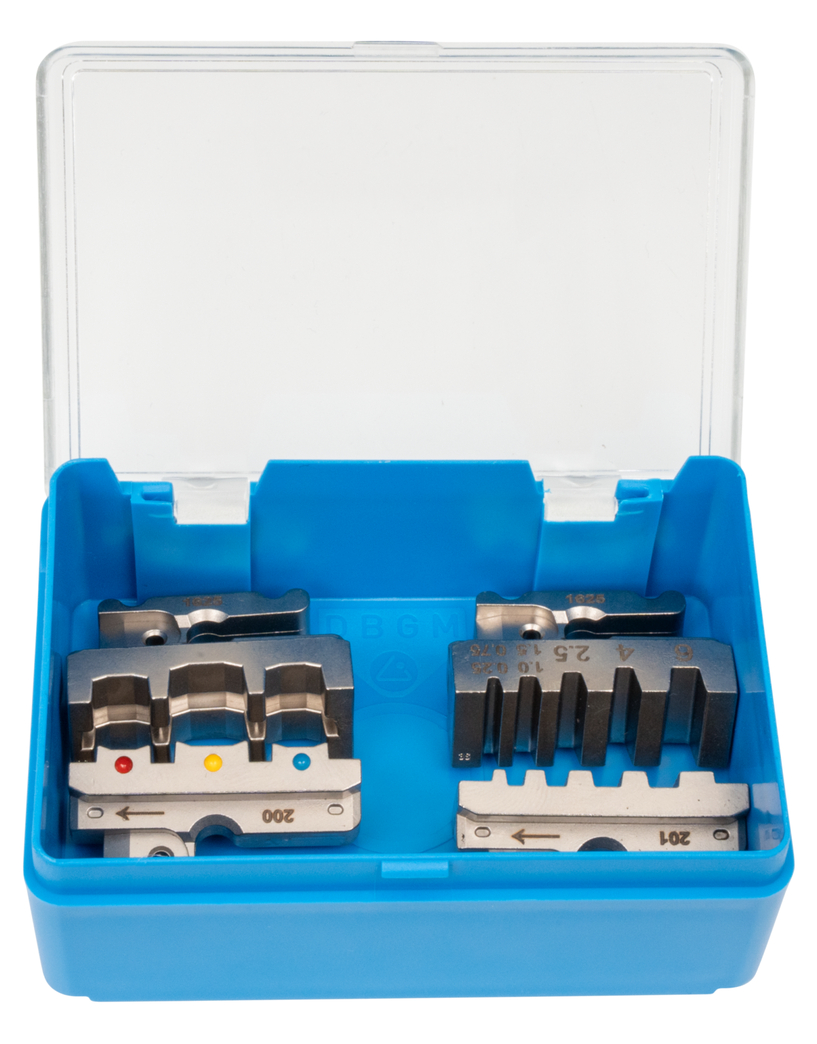

- 크림프 모듈이 있는 박스
- 사용 지침
Product safety
Attention:
Tool not to be used on live cables or conductors.
